Strut Hardware
For Porsche 911, 912, 930
- Components designed to take your struts to the next level.

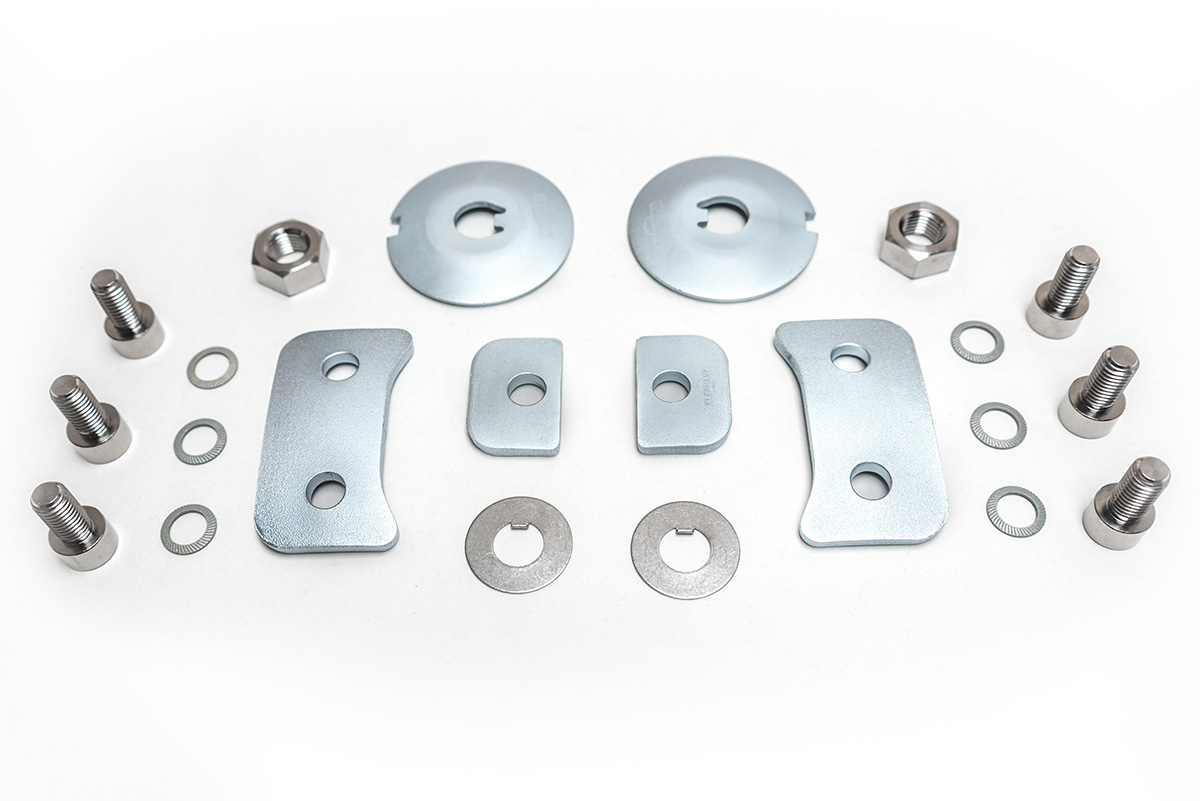

Strut Top Hardware Kit For Porsche 911, 912, 930, 914
Includes fasteners, cupped washers, locking washers, and rectangular plates for top of struts.
Includes fasteners, cupped washers, locking washers, and rectangular plates for top of struts.
Replaces all the visible hardware at the top of the strut for a super clean, complete and professional result.
Available in original steel and optionally in Titanium.
- Titanium Series:
- Titanium never rusts and it saves about 1lbs compared to the steel kit.
- All components in this kit are Titanium except for the M10 lock washers and the bendy lock washer.
https://www.elephantracing.com/wp-content/uploads/MK1_0240-Edit-150x100.jpg
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2200003 | - | '65-'89 911, 930, 914 Steel 1 kit req'd per Car |
| 2200007 | - | '66-'89 911, 930, 914 Titanium 1 kit req'd per Car |
Strut Shortening Wiper Seals For Porsche 911, 912, 930
Replace Your Worn Out Wiper Seals
Lowering your car reduces the travel range of the shocks/struts. Shocks with limited range of travel have a tendency to bottom out more often while driven hard or under poor road conditions. This translates to ride harshness and eventual damage to shocks/struts and shock mounts.
These wiper seals shorten struts by 3/4 inch and add much needed travel. Have us install the shortening wipers along with other strut modification services. Shock body shortening services are also available.
- Note: Only for later style Bilstein struts with green seal holders, as pictured above. Earlier style struts with zinc coated 5/8″ holders require further strut modifications. Please call for more information.
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2280905 | - | '69-'89 Late Bilstein Struts Only with green seal holders 1 pair req'd per Car |
Front Spindle Collar and/or Seals For Porsche 911, 912, 930, 914
Spindle collars, also called seal races, are fit to the base of the spindle. They position the inner wheel bearing and provide a surface for the inner seal to ride upon. Select the correct width based on the model year of the wheel hub being used, ’65-’68 or ’69-’89.
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 1-99970108450 | Porsche part number "999 701 084 50"Front spindle collar and/or seals, Porsche part #999-701-084-50999 701 084 50 | Seals only, '65-'89 911/912/930/914 1 req'd per Car |
| 1-90134166100 | Porsche part number "901 341 661 00"Front spindle collar and/or seals, Porsche part #901-341-661-00901 341 661 00 | Collar, Fits '65-'68 wheel hubs, 911/912 2 req'd per Car |
| 1-90134162300 | Porsche part number "901 341 623 00"Front spindle collar and/or seals, Porsche part #901-341-623-00901 341 623 00 | Collar, Fits '69-'89 wheel hubs, 911/912/930/914 2 req'd per Car |
Coilover Brake Line Support Bracket Kit For Porsche 911, 912, 930 & 914
Standard front struts have welded-on brackets to support the brake hard line. Threaded body coilover struts and coilover sleeve conversion require the removal of these brackets, leaving the brake lines unsupported and prone to failure – always at the worst possible time!
Standard front struts have welded-on brackets to support the brake hard line. Threaded body coilover struts and coilover sleeve conversion require the removal of these brackets, leaving the brake lines unsupported and prone to failure – always at the worst possible time!
Our support bracket kit is an easy bolt-on support for the brake lines.
The kit bolts to existing threaded holes on the strut.
- Easy bolt-on – Attaches to the brake dust shield mounting holes using provided hardware. dust shields can be retained or removed.
- Prevents brake hard line flex / fatigue – Supports the brake hard line. Unsupported, the hard line will constantly flex and eventually leak.
- Quality throughout – Purpose made brackets are laser – cut from stainless steel and pre-formed. Top quality hardware is provided to complete the kit.
Watch this Quick Overview
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_003-150x114.jpg
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_002-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_001-100x150.jpg
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_002-150x100.jpg
https://www.elephantracing.com/wp-content/uploads/brake-line-support-installed_001-100x150.jpg
Application Table
| Part No. | Stock Equiv. | Fitment & Configuration |
|---|---|---|
| 2280911 | - | '65-'89 911/912/930/914 1 pair req'd per Car |
Links for Coilover Brake Line Support Bracket Kit
Speak to an expert: 1.408.297.2789
